Krmilnik za DC motor – razširitev za Arduino Uno (L298P) (Motor Shield)

15.12

Razširitvena ploščica za Arduino UNO in kompatibilne plošče za krmiljenje dveh DC motorjev. Uporablja čip L298P

Več informacij najde tukaj.

Na zalogi

Šifra: 404000066 Kategorija:

Opis

Introduction
L298P Shield DC motor driver adopts the L298P driver chip wich is exclusively made for large-power motor. It can drive 2 DC motors directly with a drive current reaching 2A. The motor output is equipped with eight high-speed schottky diode as protection. This driver carries neat circuit layout and bonded components, in addition, the multi-layer design enables it to be plugged to Aduino directly.
L298P Shield DC motor driver carries PWM mode. The motor can be powered via Aduino VIN input or terminal input on the driver, which are switchable by jumper.

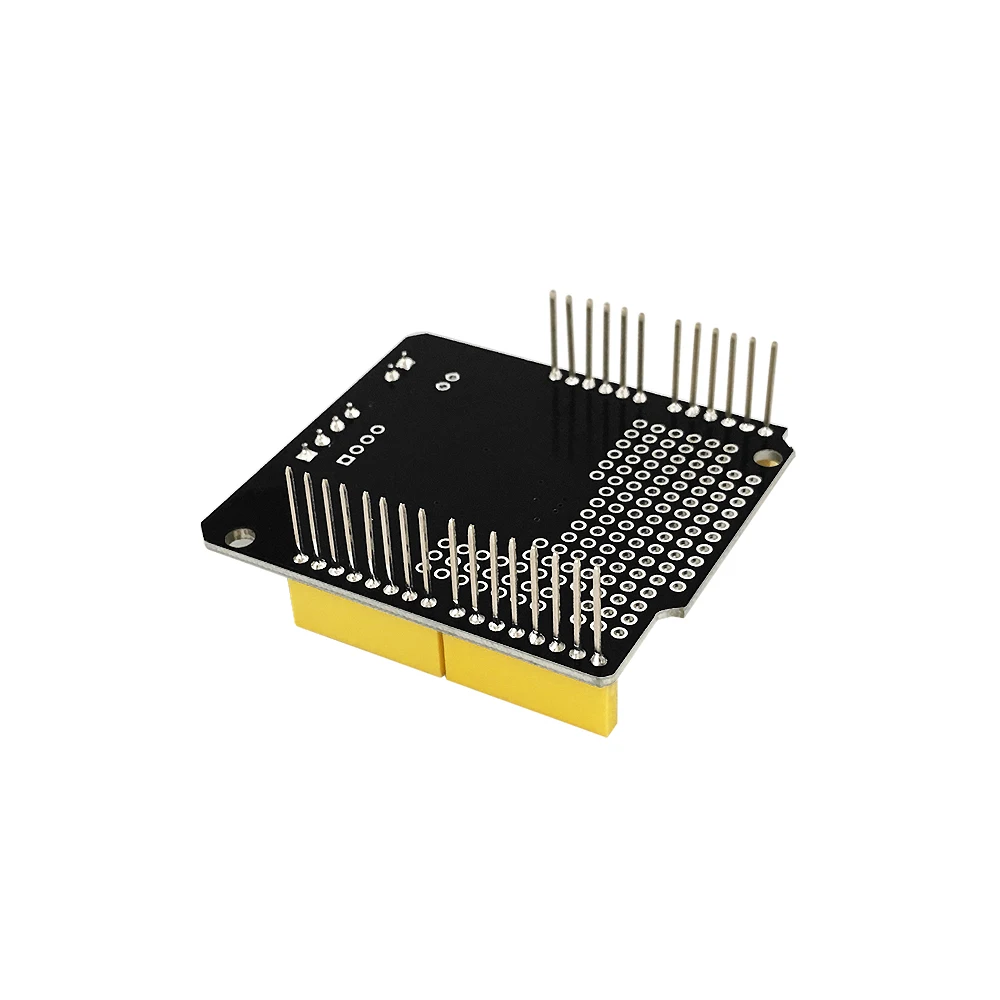

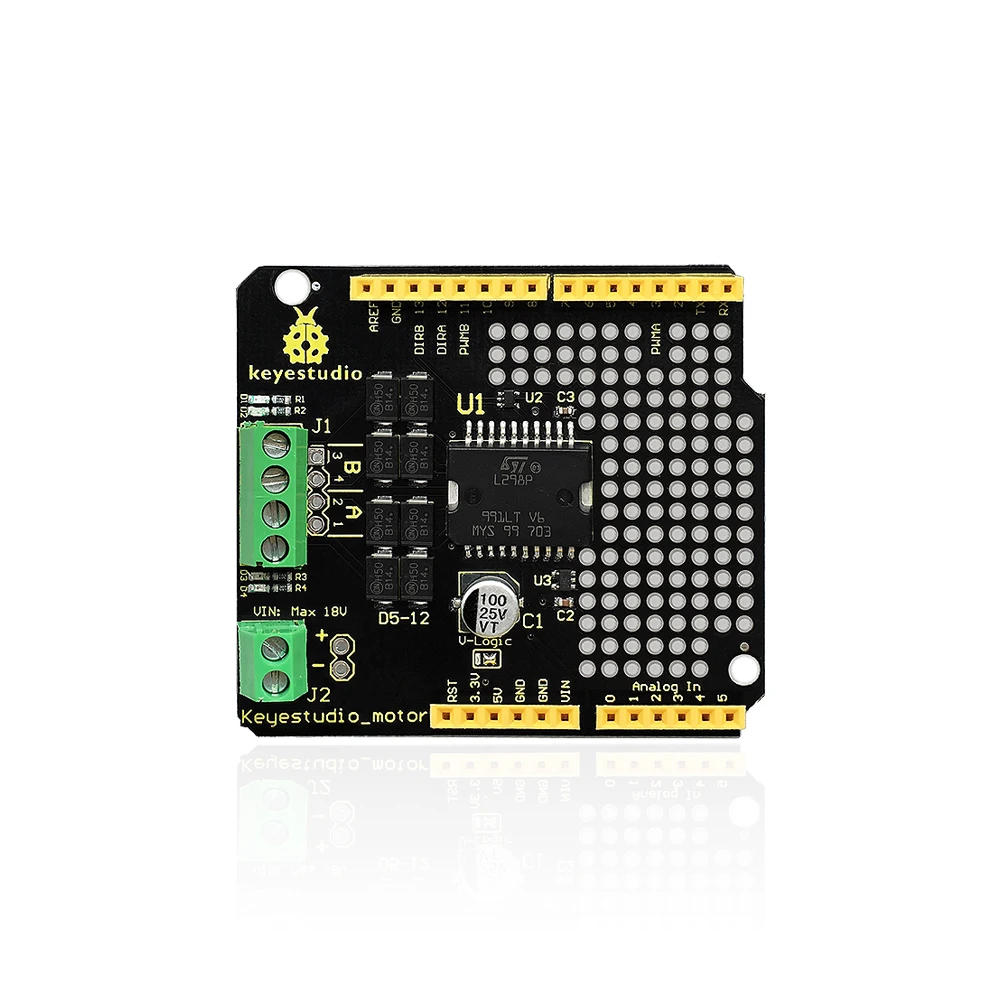

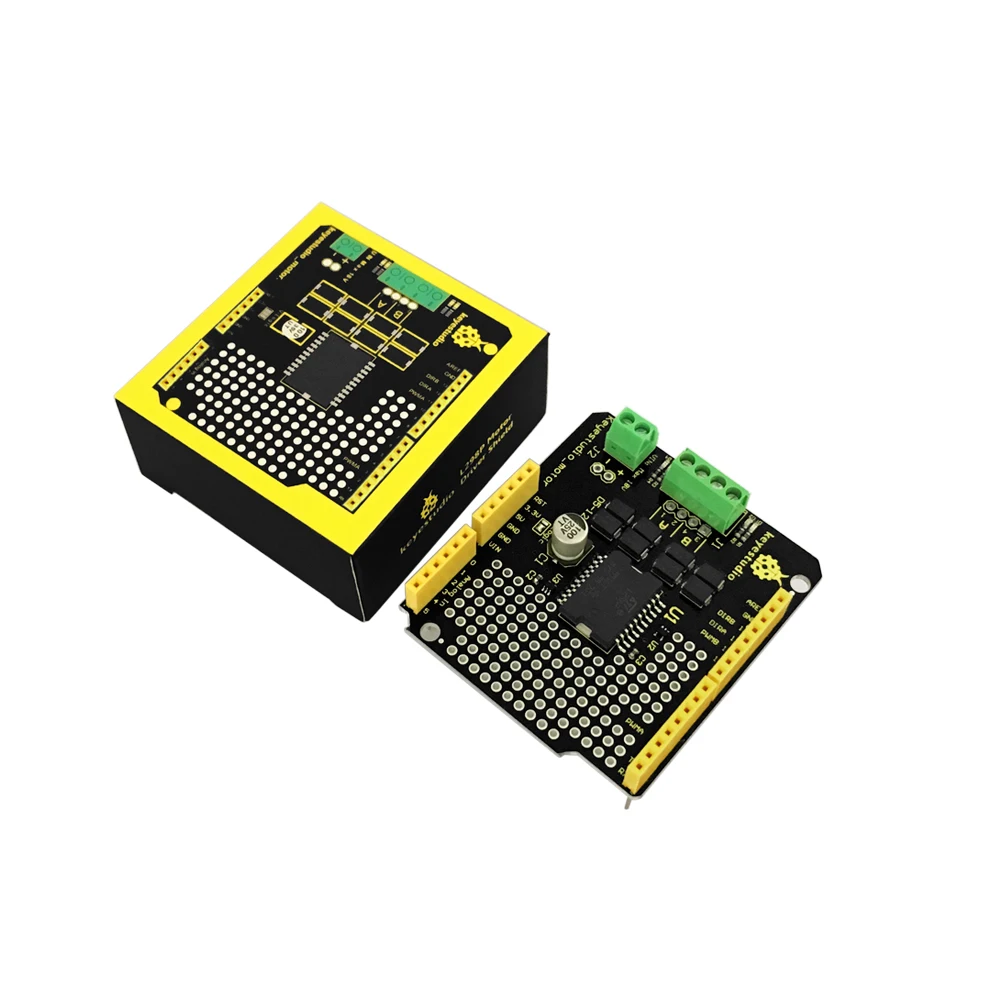

KS0007 (6)KS0007 (2)KS0007 (5)

Specification
  • Logic part input voltage : VD: 5V
  • Driving part input voltage VS: VIN input 6.5 ~ 12V, PWRIN input 4.8 ~ 24V
  • Logic part working current Iss: ≤36mA
  • Driving part working current Io: ≤ 2A
  • Maximum dissipation power: 25W (T=75°C)
  • Control signal input level:
  • High level: 2.3V ≤ Vin ≤ 5V
  • Low level: -0.3V ≤ Vin ≤ 1.5V
  • Working temperature: -25°C~+130°C
  • Driver form: Dual power H bridge driving
KS0007 (7)
Sample code:
int E1 = 5;
int M1 = 4;
int E2 = 6;
int M2 = 7;
void setup()
{
pinMode(M1, OUTPUT);
pinMode(M2, OUTPUT);
}
void loop()
{
int value;
for(value = 0 ; value <= 255; value+=5)
{
digitalWrite(M1,HIGH);
digitalWrite(M2, HIGH);
analogWrite(E1, value); //PWM speed regulation
analogWrite(E2, value); //PWM speed regulation
delay(30);
}
}



Mnenja

Zaenkrat še ni mnenj.

Samo prijavljeni uporabniki, ki so kupili ta izdelek, lahko napišejo mnenje.

Tehnične podrobnosti

Proizvajalec KEYES
vhodna napetost 7-12V
napetost signala 5V
maksimalni tok 2A
